Digital File: CNC Dovetail Drawers Fusion 360 CAD / CAM

$0.00

This is the CAD file I am currently using for CNC Dovetail Drawers. The file is parametric, allowing you to customize any of the parameters of the drawer: material thickness, bottom thickness, dovetail angle, dovetail count, etc. I documented the parameters in a readme PDF file that I’ll also include.

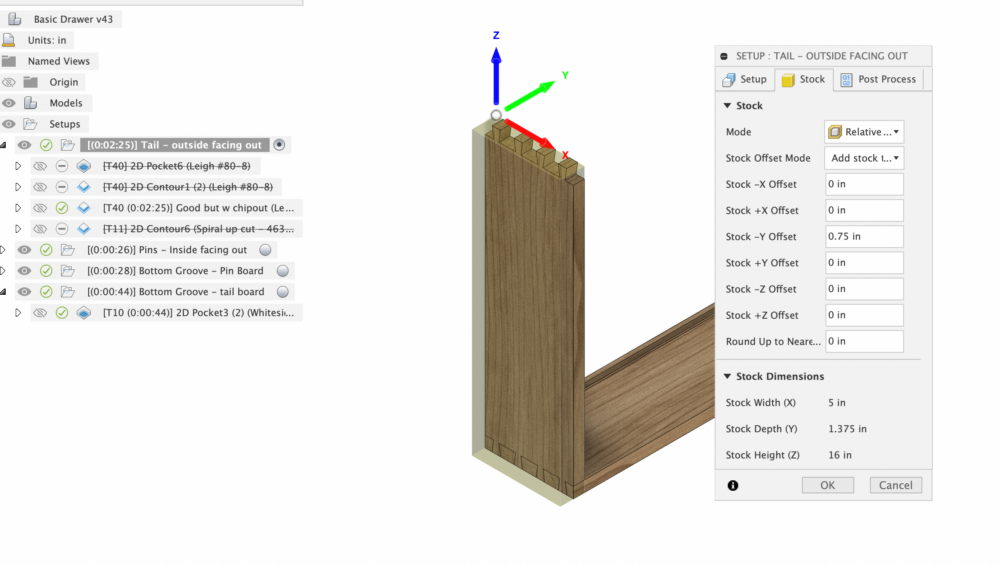

I have the CAM / Toolpaths setup for cherry wood. You will likely need to modify the speeds and feeds for other types of woods and CNC machines. I have an Avid 4×8 Pro, with NEMA 34 motors, and a 5 HP ATC spindle.

NOTE: The latest version is “Drawer v22.f3z“, however, it requires you to have a paid version of Autodesk Fusion as I use “Configurations” with various drawer heights configured.

Build Video Series:

Files included:

  • CNC Dovetail Drawer v1_1.pdf – PDF directions / Bits Needed / Notes
  • Basic Drawer v63.f3d – Fusion 360 CAD File with Toolpaths/CAM
  • Drawer v22.f3z.zip – Autodesk Fusion CAD File with Configurations for various drawer sizes. REQUIRES a paid version of Fusion 360 to open the f3z file!!

Original release was January 2024, with a big update in October 2024.

A “Configuration” version added January 30, 2025.

License: You are welcome to use this file for both commercial and personal projects. Please do not re-post the digital file anywhere else on the internet without my permission.
