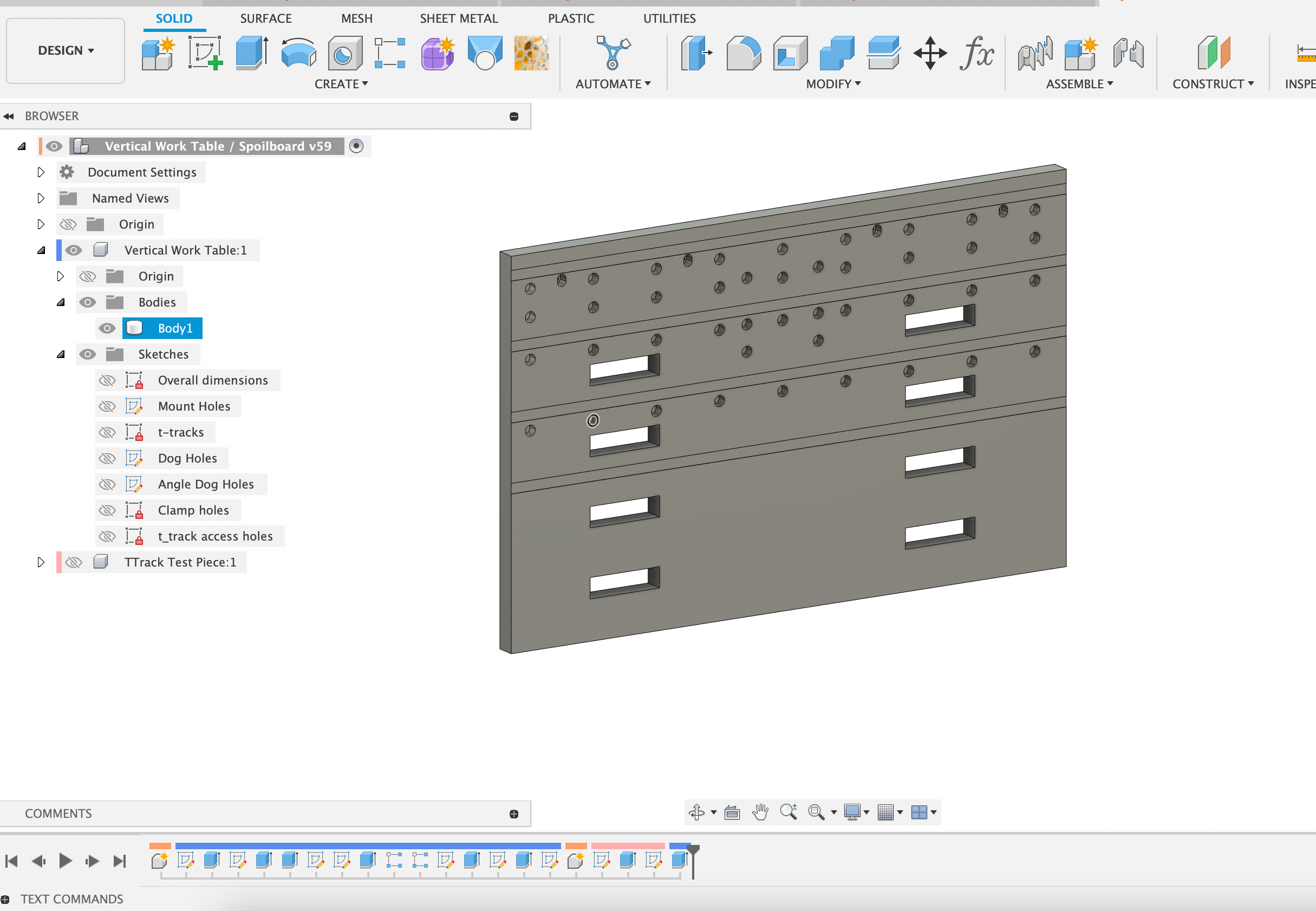

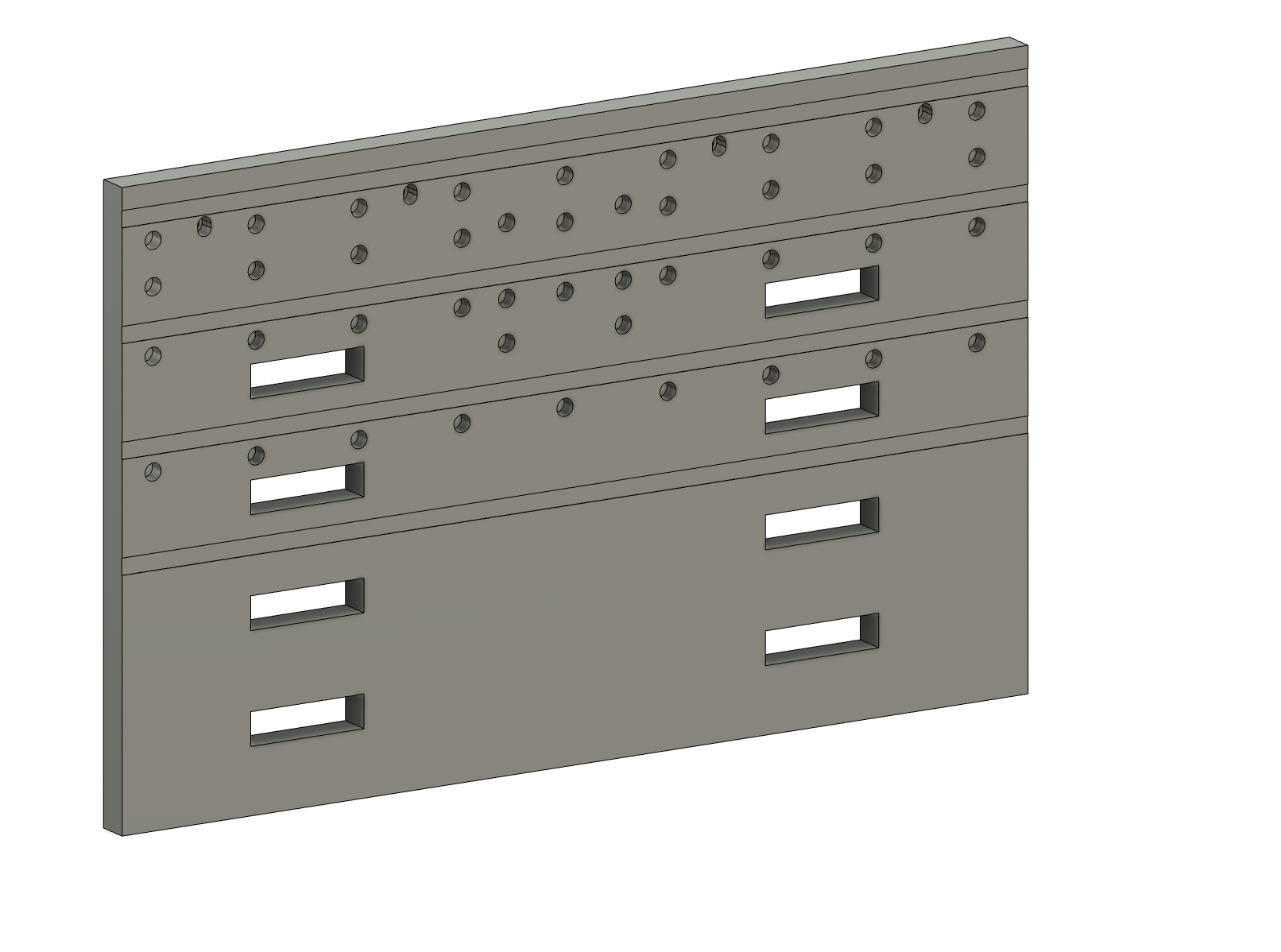

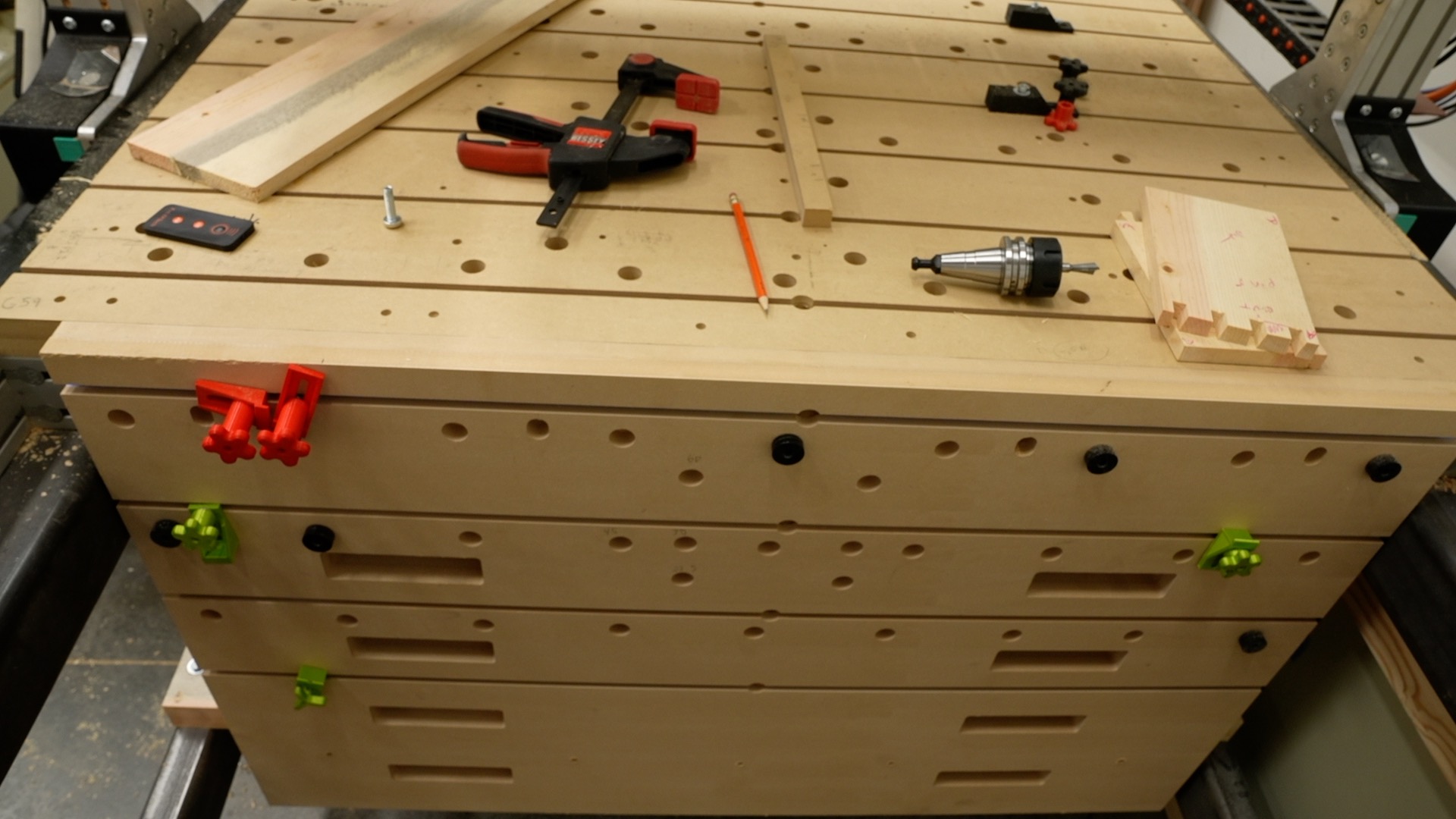

This is a free download of the CAD file for my CNC Vertical Work Table. I designed it for my 4’x8′ Avid CNC, but it could easily be modified for any machine. The file is in Fusion 360, with some parametric parameters for customization, but I don’t promise they will work correctly.
Vertical Work Table Build Video: https://youtu.be/goEUX2vf508
Horizontal (Flat) CNC Spoilboard Video:https://www.youtube.com/watch?v=wUP99Vdxp3E
Materials / References
- 3/8” spiral downcut bit. A 1/4” downcut bit will also work fine too.
- I used this 3/8”: https://amzn.to/3FQCM9W
- or 1/4” spiral downcut: https://amzn.to/3QQqxAC
- 2” Surfacing Bit: https://www.infinitytools.com/dado-planer-router-bits
- I’m sure there are lots of other options…this is what I had before I got my CNC so I use it.
- 7/64 drill bit
- Hold Down Toe Clamps
- Hold Down Cam Clamps
- 3/4” MDF (Home Depot / Lowes)
- Dogs: https://precisiondogs.us/products/precision-bench-dogs?variant=15569318740017
- T-Bolts
- T-Tracks (I’ve tried all these versions – all seem about the same):
- Option #1: https://amzn.to/40DxRCp
- Option #2: https://amzn.to/48bBX7K
- Option #3: https://amzn.to/48cg34q
- Machinist Level: https://amzn.to/47Q9aWw
Some links are Amazon Affiliate Links where I earn a small commission at no cost to you.
